Brand Name phoebevpartstols

Type Display

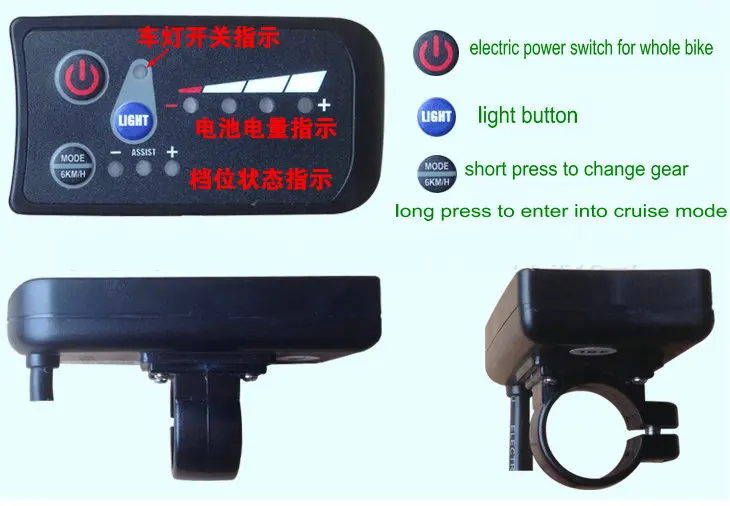

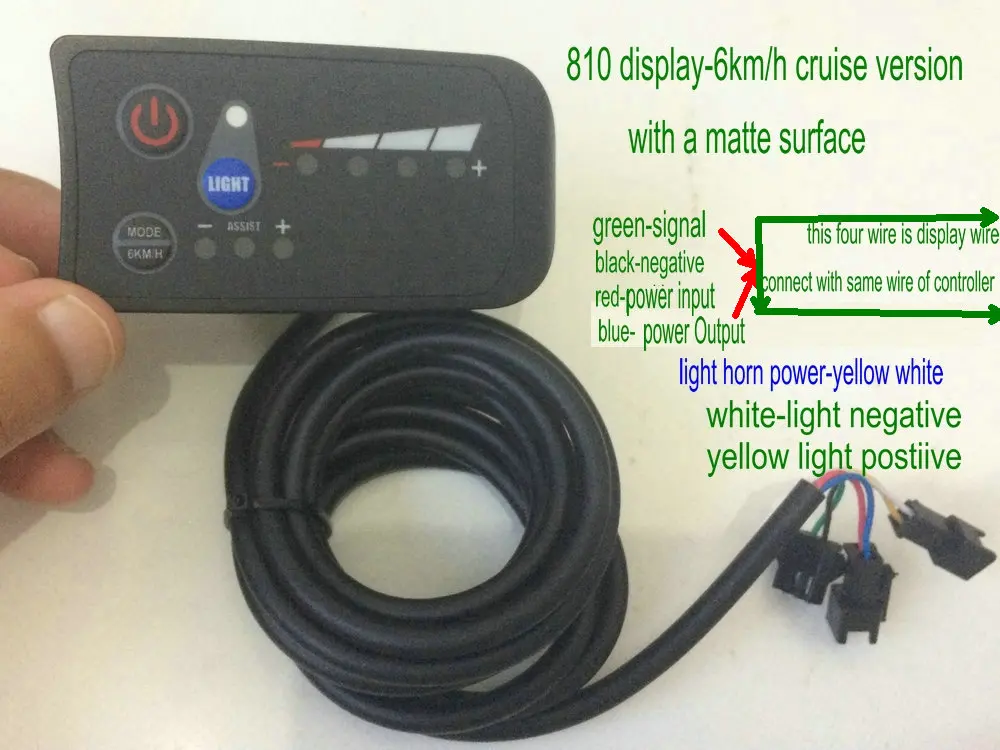

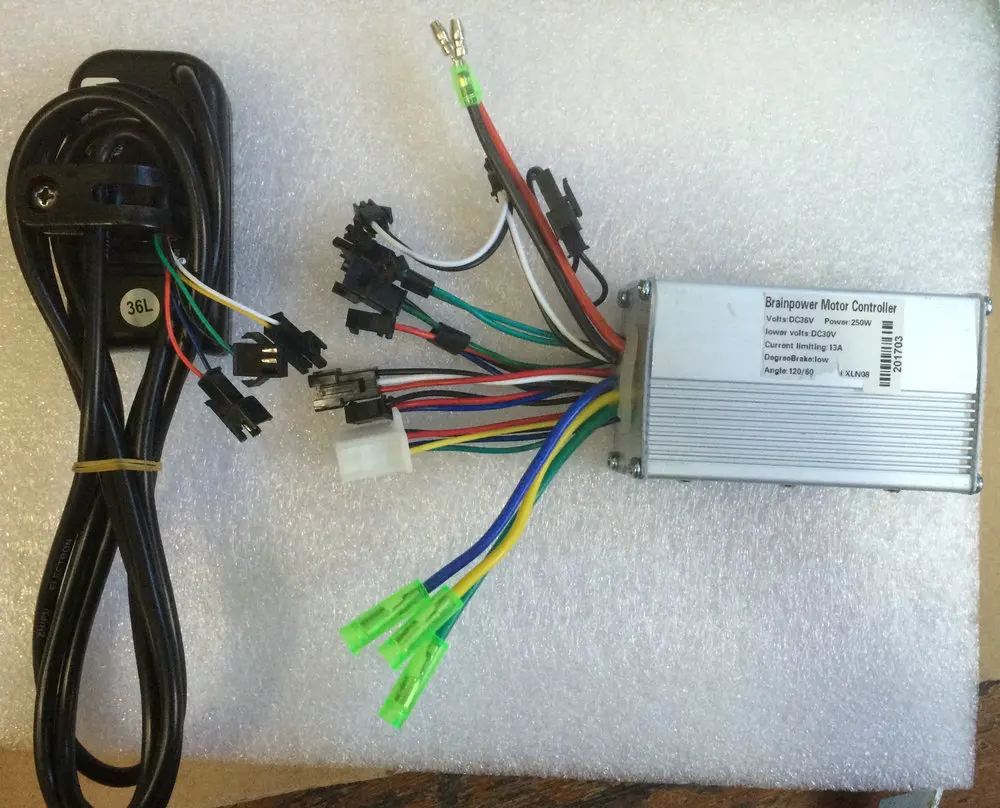

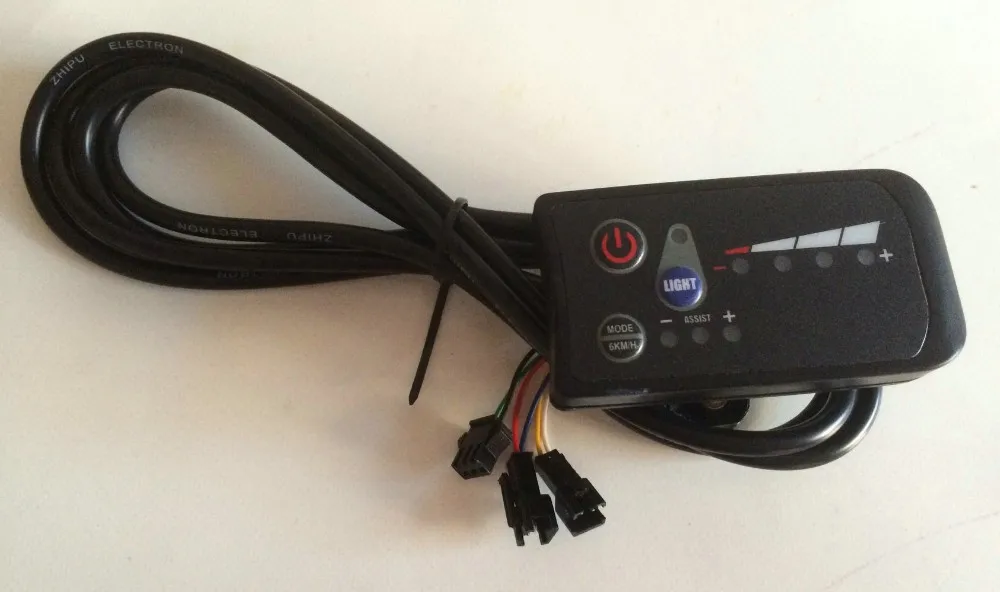

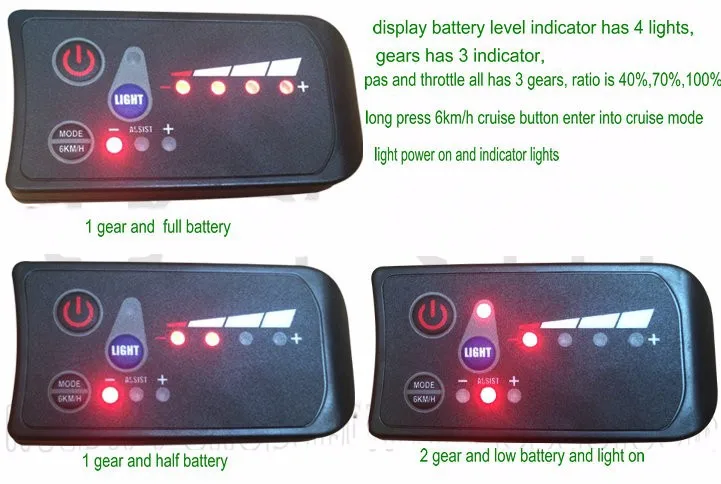

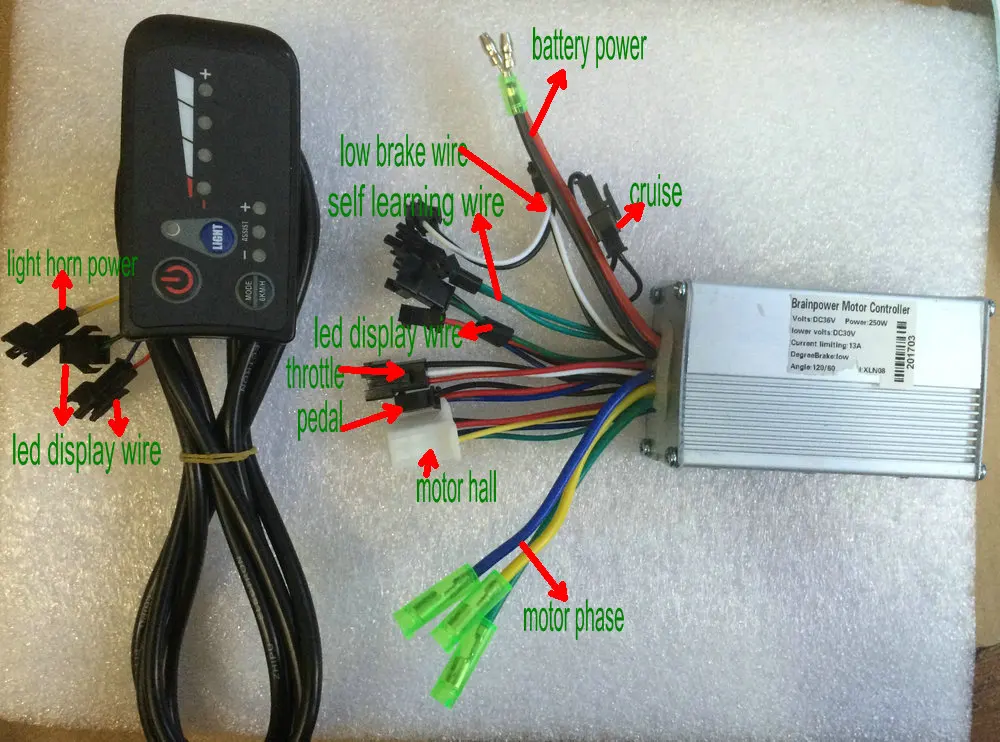

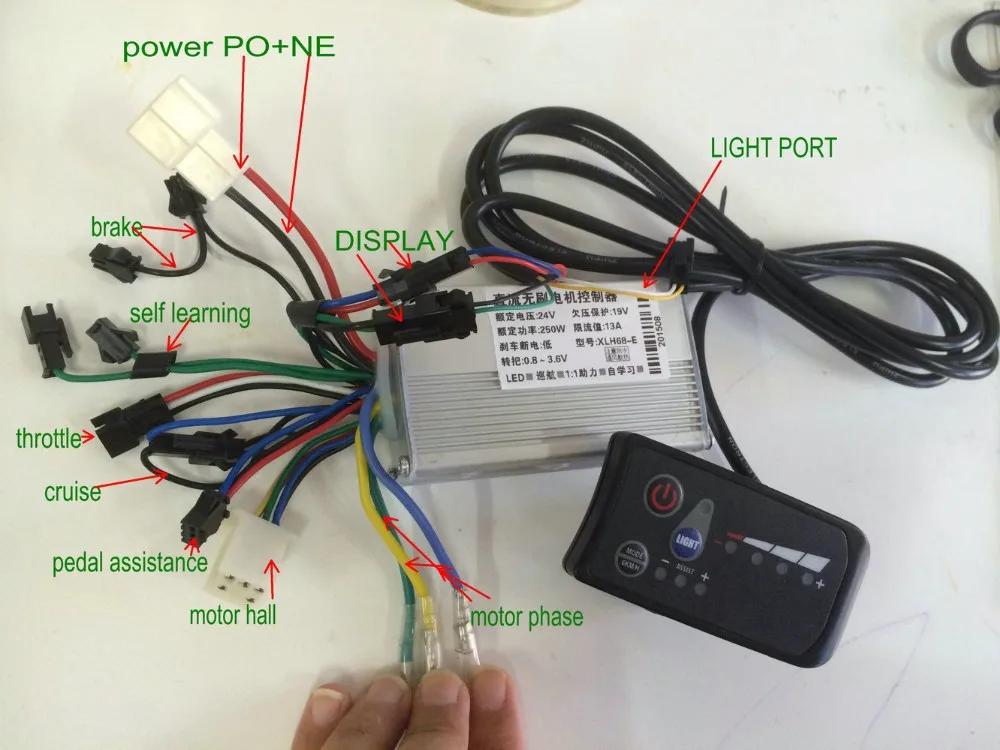

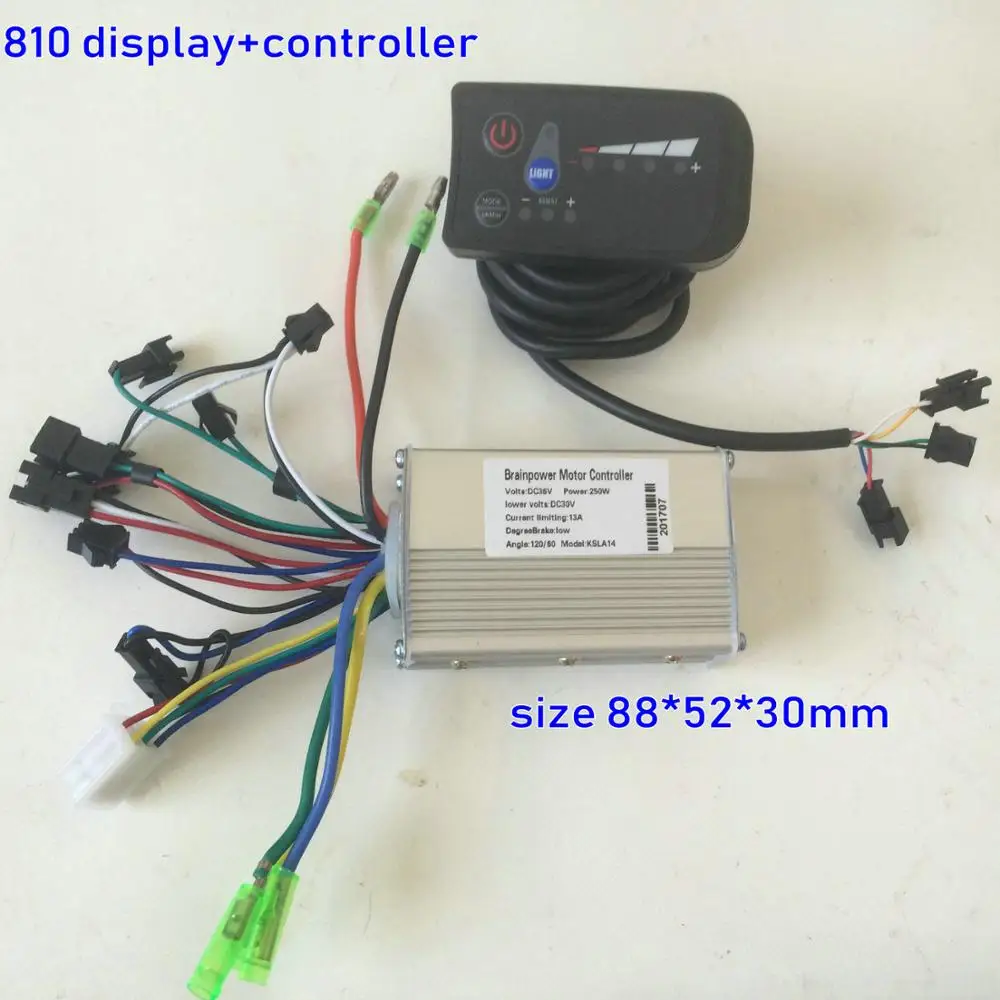

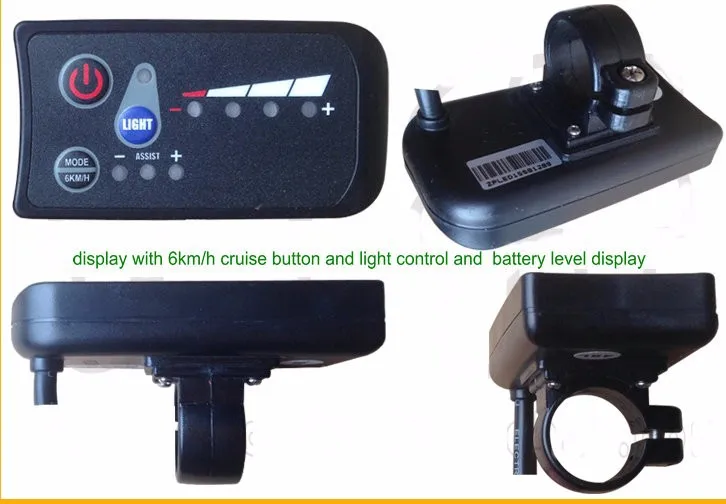

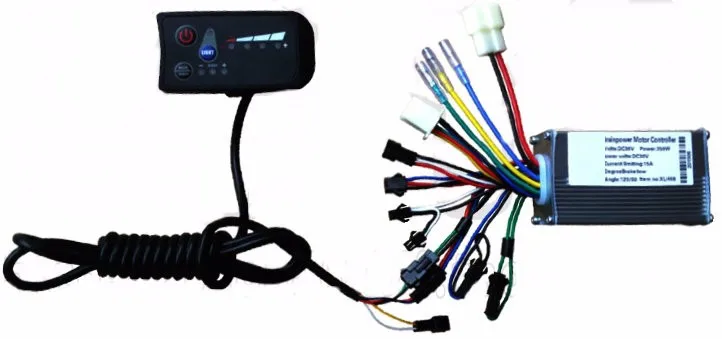

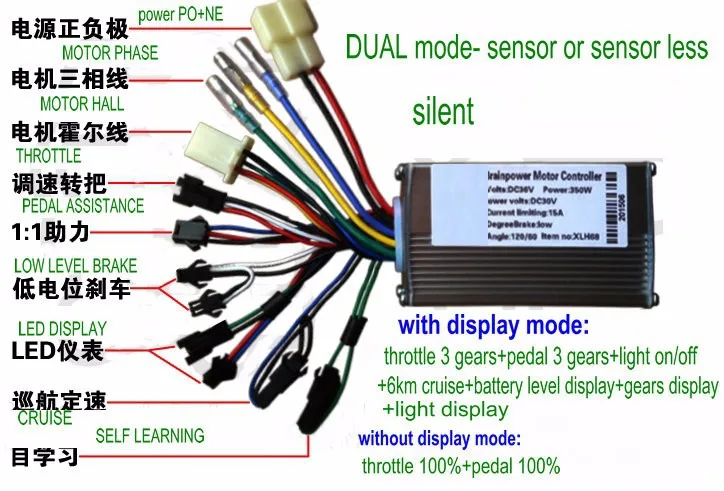

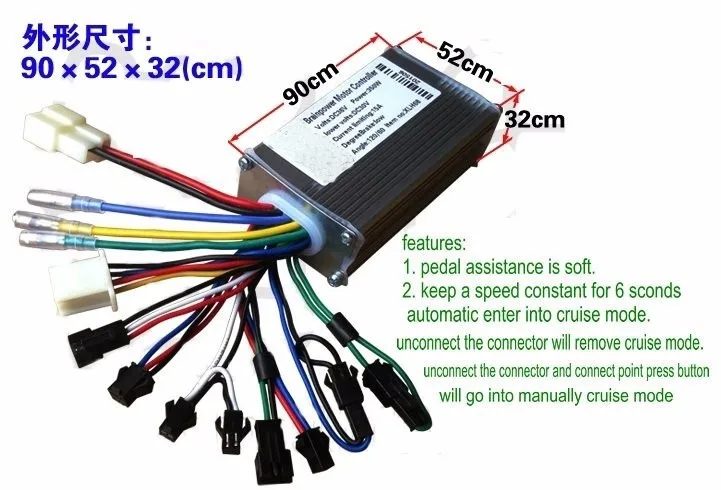

24v36v48v250w350w controller & led display control panel with 6KM/H cruise &light control switch button electric bike scooter parts this controller is dual mode, fit for motor with sensor hall or not. the display panel may have different design but function is the same, features display has light and cruise control button features : 1.this set has self learning function. can match with motor phase of various brand. 2.long press mode/6km/h button can enter intocruise mode. controller has cruise function for default setting. 3.led display can control throttle and pedal , make motor running at 3 gears, 40%, 70%, 100% of full speed. 4. display can control whole bike electric switch, light on/off, and indicate battery level. 6mosfet controller default setting size 88*52*30mm for quantity order can make smaller controller, please talk with salesperson about using of this group when get this group, please connect display and controller together first then use self learning wire first to match motor phase wire and hallsensor wire with those of controllers' ways like bellow : first , find right Power positive negative pole Connect with battery positive and negative output (please donot make it oppositely), 2. USE self learning function intelligently identify motor phase and turning direction Connect power, motor phase wire, hall wire, electric switch, rolling handlebar /throttle wire, learning wire, make sure it is right and turn power on, motor runs automatically. If direction right, then cut off learning wire after 2-3seconds, this finished the learning. If motor turns in opposite direction, then cut off learning wire, and connect on immediately or using handlebar, motor change to right direction automatically. Cut off learning wire after motor running 2-3seconds, this finished learning. Using Learning wire only in connecting period, when finished wiring, cut off it, you need not connect it. customer please leave contact way so that we can send user instruction and wiring diagram. control panel has light control button, battery level display indicator, pedal assist gear/mode indicator and cruise button led has light port and display wiring Rated working voltage -24v /36v /48v Rated power-150w-350w Max current-10A-19A(default setting 13A, IF WANT change please leave message in advance,) battery under voltage protection point : 20V/31V/42V (IF NEED we can adjust this. default setting 22.5v) Adaptive motor phase angle: 120degree controller size 88*52*30mm other function introduction please check , their controller is same , just the display is a little different. https://it.aliexpress.com/item/32949652103.html price is for sample only, for quantity order you will get big discount.
